 Result Status:
Shows SPI software current status on the bar,
using different colors to differentiate
conditions: Good, Warning and NG. All
conditions and statuses are listed below:
Condition  Description
NG  FAIL
NG  MARKFAIL
NG  BARCODE FAILED
NG  BOARD OUT
NG  PRINTERDIR
WARNING  PROCESSING
WARNING  READBARCODE
WARNING  SCANNING
WARNING  OUTPUT SPC
WARNING  INSPECTING
WARNING  WAITING
WARNING  WARNING
GOOD  PASS
Figure 2.8 Area of Inspection
Result
2. Production Status:
Failed Item List:
Figure 2.9 Failed Item List
This area displays the failure type and
window name of all defect points on
the last tested board. User also can
see the measurement of height (μm),
volume, area and offset.
2
3
4
1
Test Research, Inc.

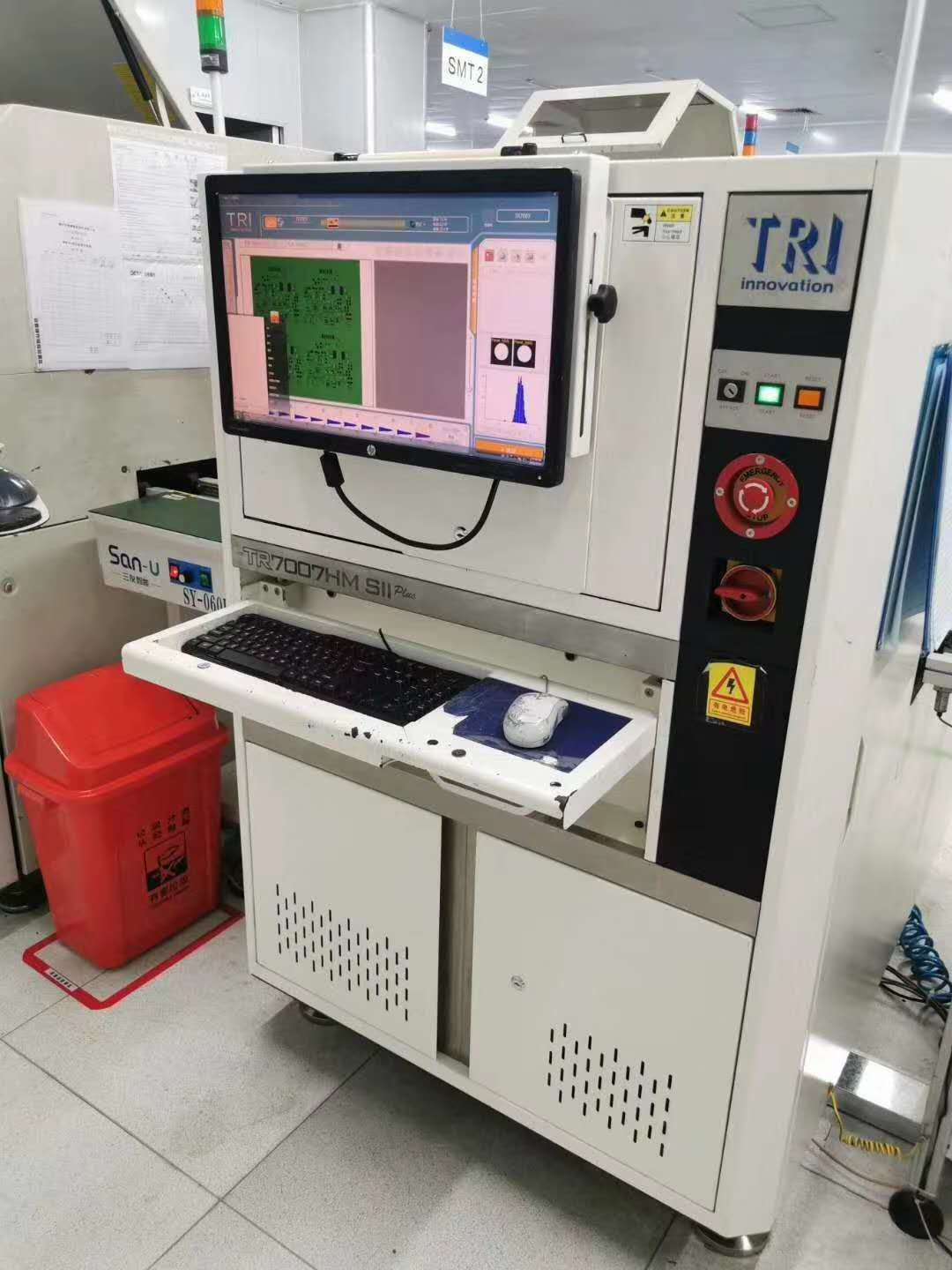

TR7007 Series User Guide – TR7007i Software 9
Pass Rate:
Figure 2.10 Pass Rate
Displays the pass quantity, Fail
quantity, pass rate and DPPM
(Defective Parts Per Million) according
to panel, board, component and pad. It
can also display in graph by double
click the text.
Failed Component Top 10:
Figure 2.11 Failed Component Top 10
Lists the top 10 most common
defective components. The list also
shows component type, fail counts and
fail rate.
Failure Type Count:
