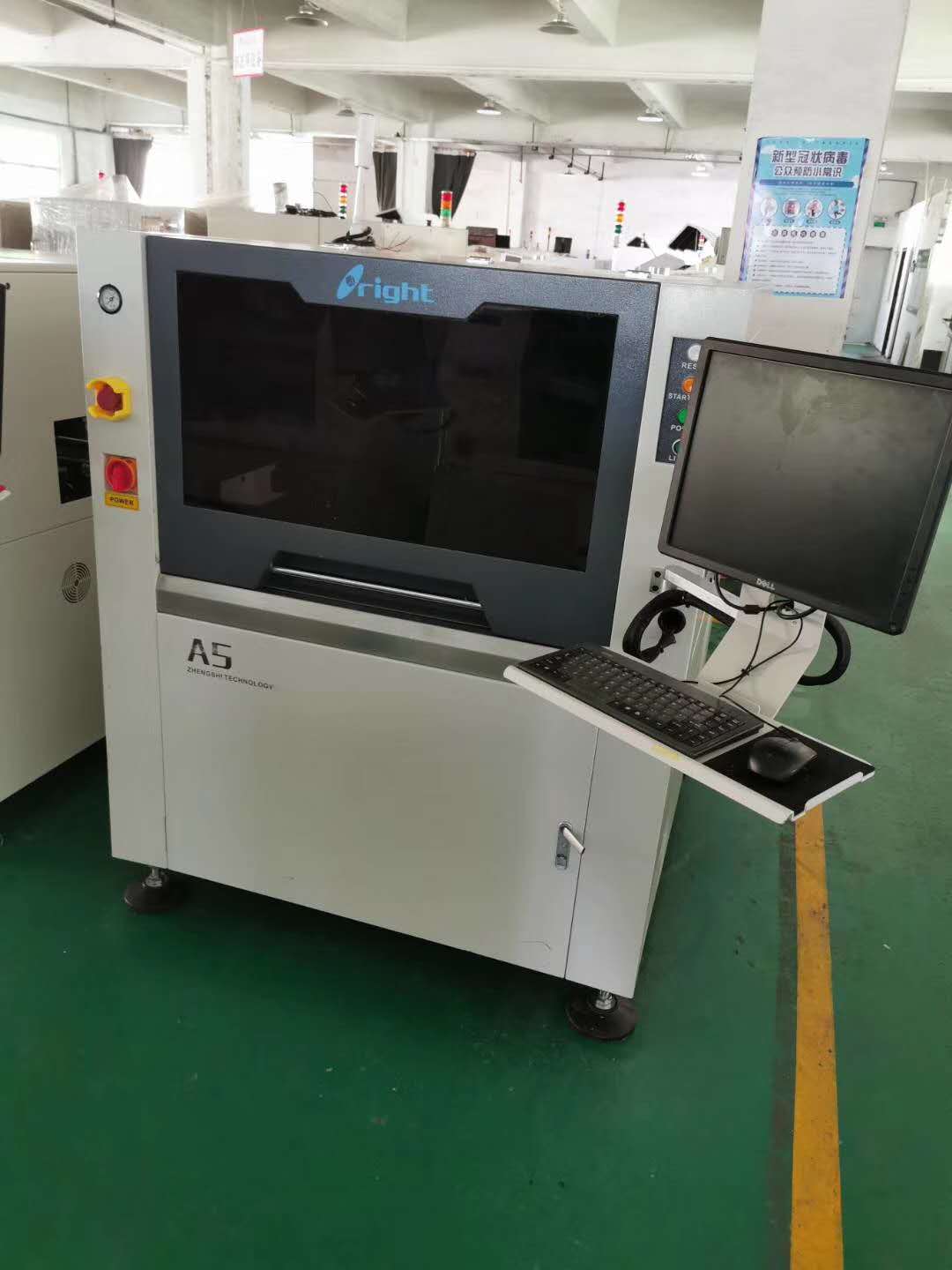

| 正实A5印刷机技术参数 | |||
| Model型号 | A5 | ||
| Item项目 | |||
| 网框尺寸 | Min Size | 470×370mm | |
| Screen frames | Max Size | 737×737mm | |
|
|

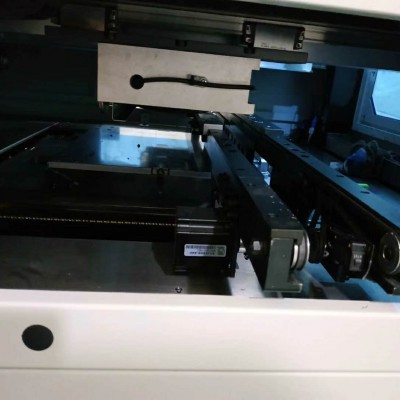

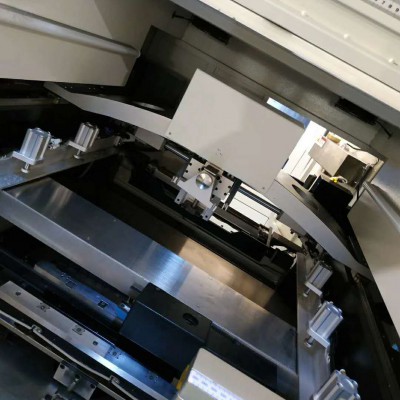

Thickness | 25~40mm | |
| PCB Min Size最小尺寸 | 50×50mm | ||
| PCB Max Size尺寸 | 400×340mm | ||
| PCB Thickness厚度 | 0.4~6mm | ||
| PCB Warpage翘曲量 | <1% | ||
| Transport Height传送高度 | 900±40mm | ||
| Transport Direction传送方向 | Left-Right;Right-Left;Left-Left;Right-Right | ||
| 左-右；右-左；左-左；右-右 | |||
| Transport Speed运输速度 | Max 1500mm/s（Programmable） | ||
| Board Location | Support System | Magnetic Pin/Up-down table adjusted/support block | |
| PCB的定位 | 支撑方式 | 磁性顶针/可调节顶升平台/等高块 | |
|
|
Clamping System | Side clamping,vacuum nozzle,Automation retractable Z pressure | |
|
|
夹紧方式 | 边夹；真空吸嘴;自动伸缩Z向压板 | |
| Printer Head | Two independent motorised printhead | ||
| 印刷头 | 两个独立的直连式马达驱动印刷头 | ||
| Squeegee Speed刮刀速度 | 6~200mm/sec | ||
| Squeegee Pressure刮刀压力 | 0~15kg马达控制 | ||
| Squeegee Angel刮刀角度 | 60°/55°/45° | ||
| Squeegee Type刮刀类型 | Stainless steel（standard）,plastic | ||
| 钢刮刀标准；胶刮刀 | |||
| Stencil Separation Speed钢网分离速度 | 0.1~20mm/sec （Programmable） | ||
| Cleaning System清洗方式 | Dry 、Wet、Vacuum （Programmable） | ||
| 干、湿、抽真空 | |||
| Table Adjustment Ranges工作台调整范围 | X:±10mm;Y:±10mm;θ:±2° | ||
| Solder Paste Inspection锡膏检测 | 2D Inspection（2D检测）Standard | ||
| 整机参数Machine | |||
| Repeate Position Accuracy重复定位精度 | ±0.01mm | ||
| Printing Accuracy印刷精度 | ±0.025mm | ||
| Cycle Time印刷周期 | <7s（Exclude Printing & Cleaning） | ||
| Product Changeover换线时间 | <5Min | ||
| Air Required使用空气 | 4.5~6kg/cm2 | ||
| Power Input电源 | AC:220±10%,50/60HZ,3KW | ||
| Control Method控制方法 | PC Control | ||
| Machine Dimensions机器外形尺寸 | 1220（L）×1355（W）×1500（H）mm | ||
| Machine Weight机器重量 | Approx:1000kg | ||
